Description
GGT40AGS (803BB-0160)

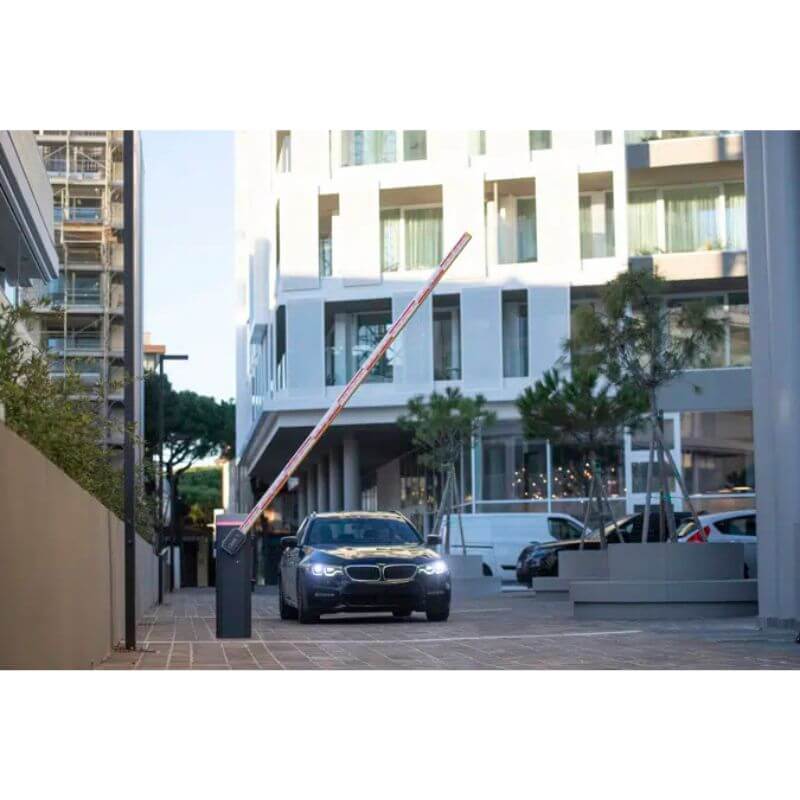

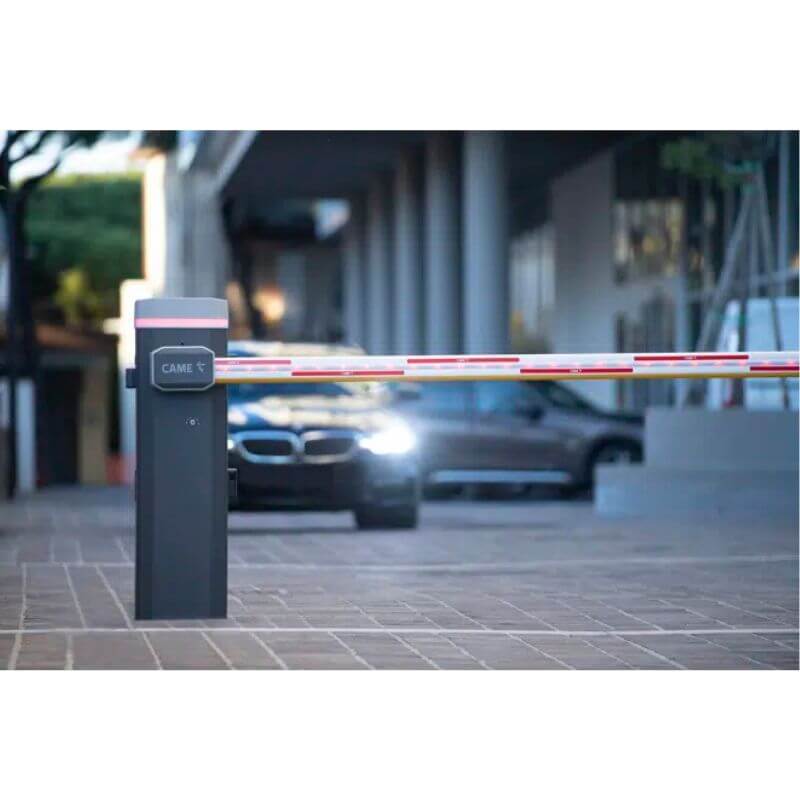

Ideal solution for heavy-duty service in carparks, driveways and commercial settings with a clearance width of up to 4 metres.
Automatic barrier with 24 V DC irreversible gearmotor with encoder; galvanised and painted steel cabinet with provision for accessories. Balancing spring included.
Tested for intensive use up to 350 cycles per hour and MCBF at the level of 3 million cycles.

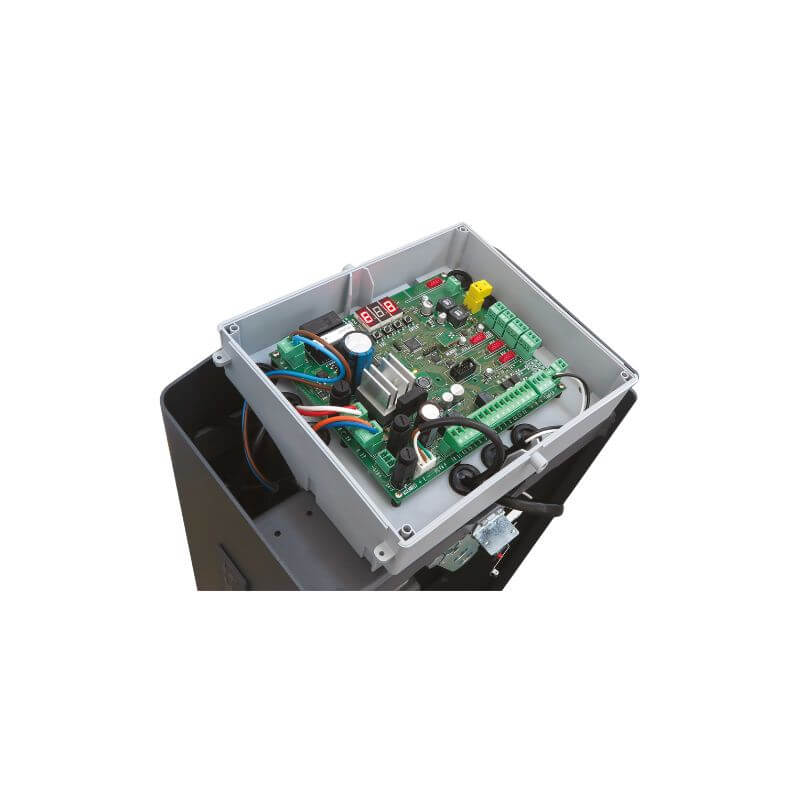

The GT4 has a built-in control unit located directly under the cover housing. Thanks to this, Thanks to this, all stages of setup and maintenance can be carried out in a comfortable standing position, with the housing closed.
The control panel includes:
- inputs for safety accessories configurable both as contacts N.C. and resistive (8k2)
- control inputs
- inputs for CXN BUS accessories
- output for arm end safety electro-block
- interface for radio receiver with fixed and rolling code for max. 250 users (AF435 / AF868)
- connector for external keyboard or RFID reader (R800 / R700)
- serial port to CONNECT gateway for remote management barrier
- connector for CAME KEY for smartphone configuration
- MEMORY to save configuration
- serial port with MODBUS protocol
Practical 7-segment display and control buttons allow you to navigate through the entire menu and configure the barrier in a few simple steps.
ADVANCED SPEED CONTROL
Modern technology in combination with a 24V DC motor with an ENCODER allows precise management of opening and closing speeds. Thanks to this innovative function, the movement is smooth both during opening and closure without any vibrations that could adversely affect the service life of the mechanical system.
The control unit analyses the forces acting on the arm in real time and adjusts its speed based on the measured parameters, which allows the behaviour to have long-term resistance and reliability in all weather conditions.
PROPERTIES
- DURABILITY – galvanised and painted steel housing
- RELIABILITY – gearmotor with 24 V DC motor and ENCODER for advanced speed control

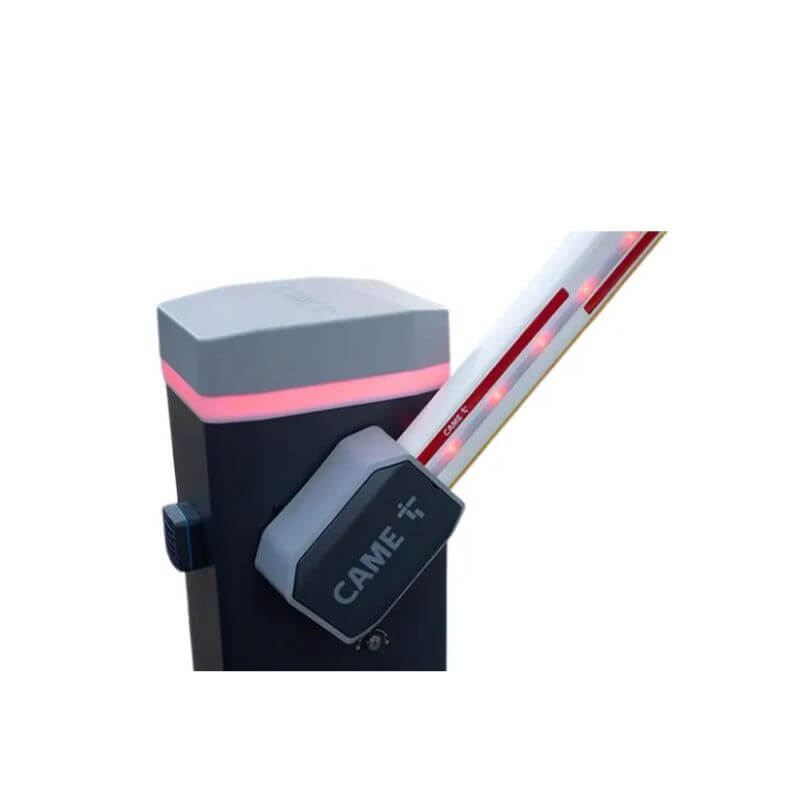

- FUNCTIONALITY – built-in RG LED lighting system for full device status indication
- SAFETY – EN12453 – rubber profile in the arm and an effective obstacle detection system guarantee full safety
- VERSATILITY – control electronics with digital inputs, CXN BUS technology, MODBUS protocol, allowing for integration with external systems
- EFFICIENCY – opening/closing speed from 2 to 4s, depending on the length of the barrier
