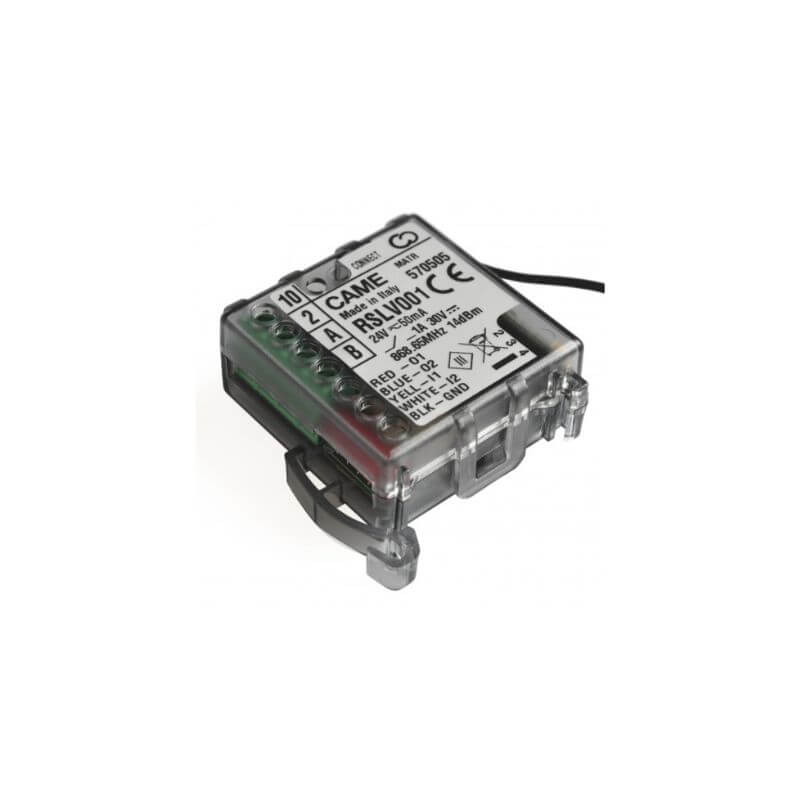

CAME 806SA-0040 RSLV001 Radio Executive Module
The RSLV001 executive module used in the CAME CONNECT system is equipped with 2 relay outputs, 2 work status inputs and an RS845 communication port operating in accordance with the CRP (CAME REMOTE PROTOCOL) standard for connecting compatible CAME control boards.
The module requires 24V power supply. It can support up to 5 devices (2 via relays and 3 via RS485-CRP).
For proper operation of RSLV, it is necessary to have an Internet gateway for the CAME CONNECT system, e.g.
- RGSM001
- RETH001
- QBEMFSB2
Communication with these modules takes place via radio at a frequency of 868MHz with a maximum range of up to 100m.
RSLV modules do not work with the RGSM001S 4G Gateway – this gateway does not have the ability to communicate with RSLV modules.
