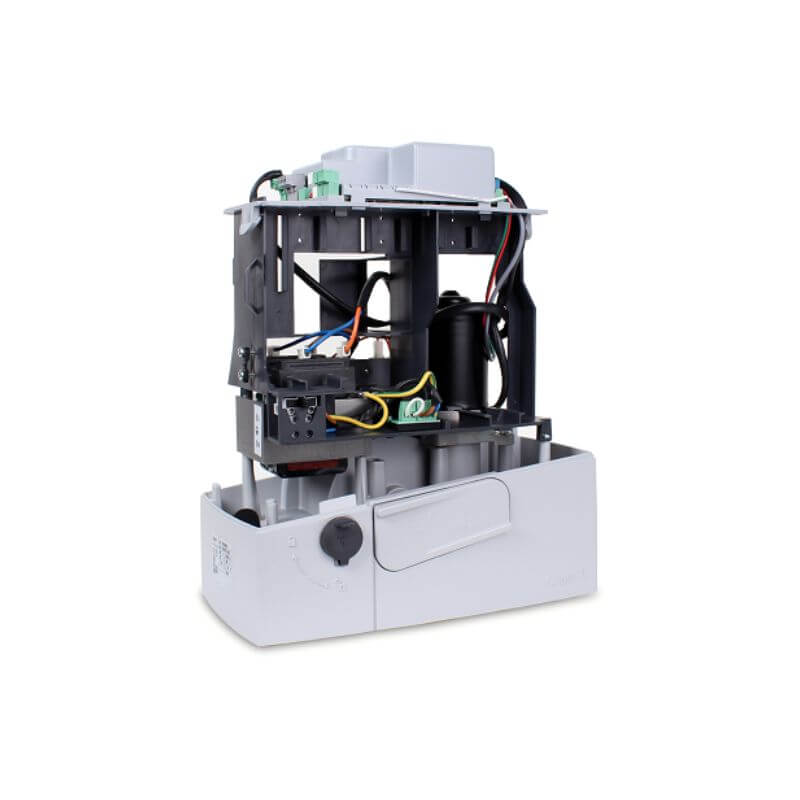

Automation with 24 V motor, complete with an electronic board with display, built-in radio decoding, movement management and obstacle detection for sliding gates up to 400 kg and 14 m in length. RAL7040 light grey cover. Fast version up to 22 m/min.
Max. length of leaf (m): 14
Max. weight of leaf (kg): 400
Protection rating (IP): 44
Power supply (V-50/60Hz): 230AC
Power supply to motor (V): 24DC
Absorption (A): 10 MAX
Power (W): 240
Duty/cycle (%): HEAVY-DUTY SERVICE
Thrust (N): 330
Opening speed (m/min): 22.0
Operating temperature (˚C): -20 ÷ +55
Limit Switch: Mechanical
