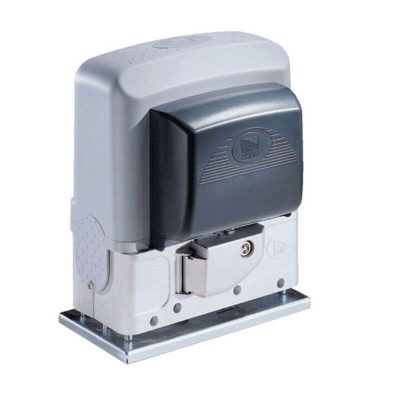

Automation with 230 V motor, complete with electronic board with programming display, built-in radio decoding and mechanical limit switches for sliding gates up to 800 kg and 20 m in length. RAL7040 light grey cover.
Protection rating (IP): 44
Power supply (V – 50/60 Hz): 230AC
Input voltage to motor (V – 50/60 Hz): 230AC
Stand-by consumption (W): 4.5
Stand-by consumption with the RGP1 (W): 0.5
Power (W): 660
Thrust (N): 1150
Opening speed (m/min): 10.5
Operating temperature (°C): -20 to +55
Condenser (μF): 31.5
Apparatus class: I
Motor’s heat protection (°C): 150
Acoustic pressure dB (A): ≤ 70
Weight (kg): 19.5
