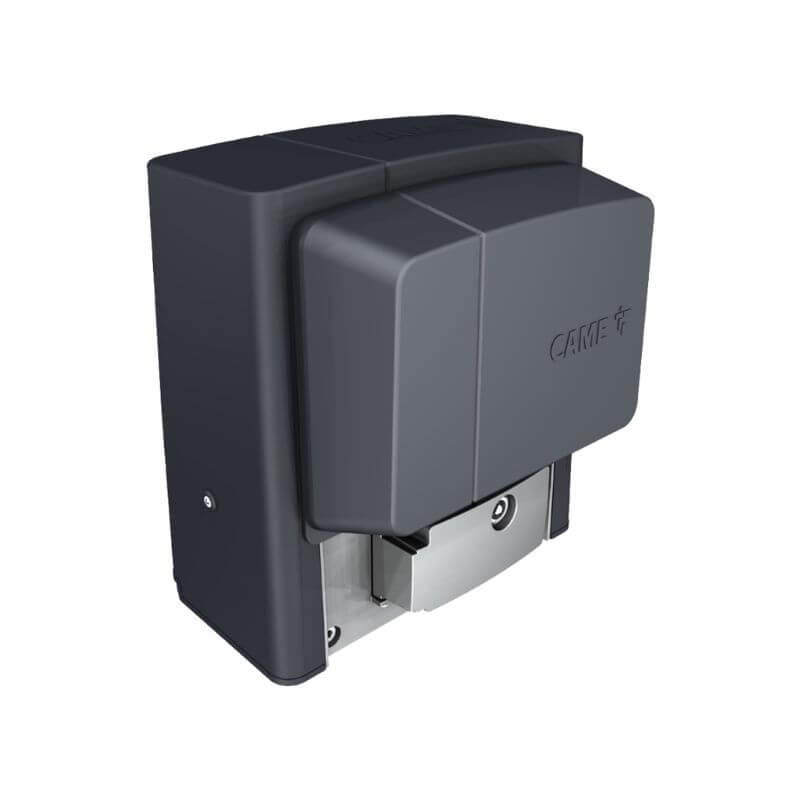

400 V gearmotor for sliding gates up to 2200 kg and 18 m in length. Comes with a Module 6 pinion, which is changed to Module 4 when dispatched.
Please Note: ZT6 Control Panel is required for a new installation of this operator.
Supply Voltage: 230V-400VAC 50/60Hz
Motor Voltage: 230V-400VAC 50/60Hz
Motor Power: 600W
Opening Speed: 175 mm/sec (240 mm/sec optional *BK25PIN**)
Duty Cycle: 50%
Warranty: 2 Years
Operating temperature (˚C): -20°C / +55°C
Max Gate Weight: 2200 Kg
Max Gate Length: 18m
IP Rating: IP54
Limit Switch: Mechanical
Pinion: Module 4 standard, Module 6 available by order
